Category: Bondioli-and-Pavesi

Part Description: Wingshaft 1 3/8-21 Ends A-BP6140002FF2

Item:A-BP6140002FF2

Bondioli-and-Pavesi Wingshaft 1 3/8-21 Ends A-BP6140002FF2

mega-cross: (1 to 3 of 3)
	Replaces:	AW27991	JOHN DEERE
		A-AW29542	JOHN DEERE
	Crossed From:	SW06416	A & I MEGA-CROSS

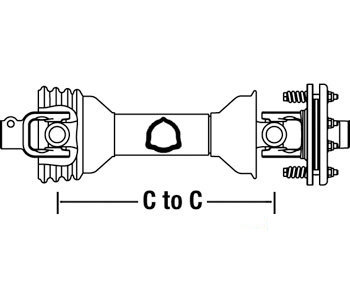

New Batwing Mower Wing Shaft, size 6. Minimum C-to C Length: 55" (1400 mm), Maximum C-to-C Length: 71" (1820 mm), Total collapsed length: 66" (1670 mm). Tractor end: 1-3/8" 21 Spline, Implement end: 1-3/8" 21 Spline with 7" clutch. Replaces Bondioli & Pavesi No. 6140002FF2. Fits Bondioli & Pavesi 100 Series.
-  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces	Bondioli Part No: BP6140002FF2
Size	6
Total Collapsed Length	1670 MM/ 66"
Tractor	1 3/8" - 21
Implement	1 3/8" - 21 Clutch
Clutch Diameter	7"
C to C Min	1400 MM/ 55"
C to C Max	1820 MM/ 71"

Weight: 65.30 lb.
PRICE: $1186.39
Core Charge: $0.00
Qty in Pkg.: 1
